Rope hoist units

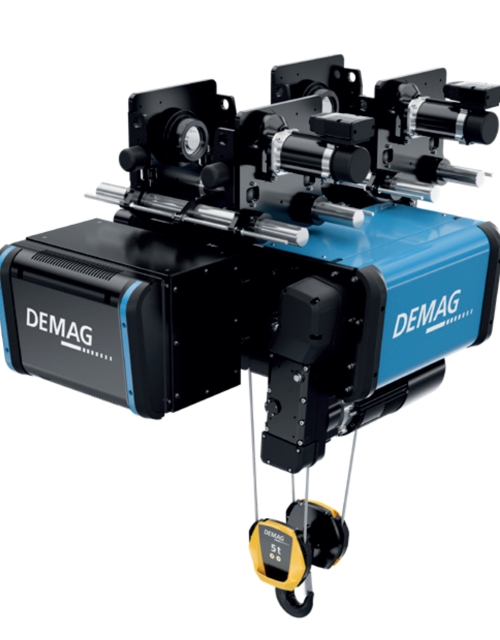

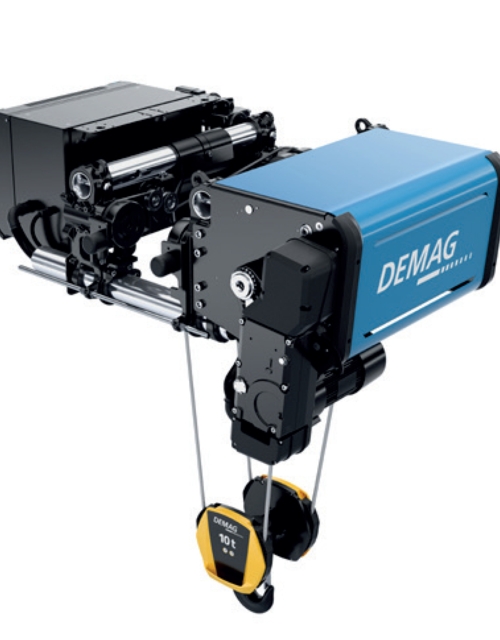

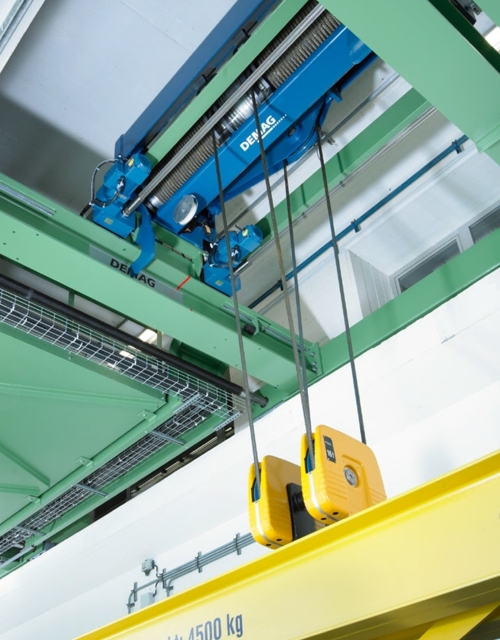

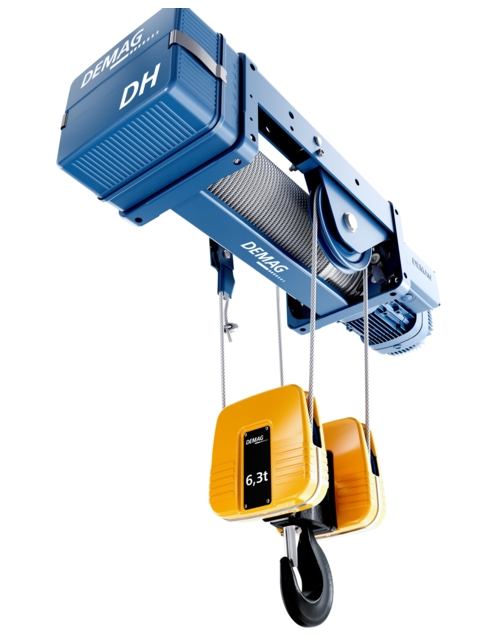

Demag DR rope hoists
- Increased efficiency with extended
service life - Frequency inverter included
- IP 55 enclosure
- Optimized motor design for low-vibration, quiet operation
- Rope guide made of tough plastic
- Ergonomically optimized controls: DSE-R control pendant and DRC radio control
- Automatic cut-off of the lifting and lowering motions in the upper and lower limit positions
- Display, IrDa interface, GSM standard radio technology
- Electrics featuring CAN bus technology
- The performance and safety status of your installation are kept under surveillance
by the monitoring system
| Type | Group of mechanisms | Load capacity [t] |
Hook path [m] | Hoist speed [m/min] | Load capacity [t] |
Hook path [m] | Hoist speed [m/min] | Load capacity [t] |
Hook path [m] | Hoist speed [m/min] | ||||||
| V1 | V2 | V3 | V1 | V2 | V3 | V1 | V2 | V3 | ||||||||
| 2/1 | 4/1 | 4/2 | ||||||||||||||
| DR 3 | 2 m | 1.6 | 12; 20 | 12/2 | 18/3 | 2-25 | 3.2 | 6; 10 | 6/1 | 9/1.5 | 1-12.5 | - | - | - | - | - |
| 3 m | 1.25 | 2.5 | ||||||||||||||
| 4 m | 1 | 2 | ||||||||||||||
| DR 5 | 2 m | 2.5 | 12; 20 |
12/2 | 18/3 | 2-25 | 5 | 6; 10 | 6/1 | 9/1.5 | 1-12.5 | |||||
| 3 m | 2 | 4 | ||||||||||||||
| 4 m | 1.6 | 3.2 | ||||||||||||||
| DR10 | 2 m | 5 | 12; 20 |
10/1.7 | 2-18 | 2-25 | 10 | 6; 10 | 5/0.8 | 1-9 | 1-12.5 | 5 | 5.8; 11.35 |
10/1.7 | 2-18 | 2-25 |
| 3 m | 4 | 8 | 4 | |||||||||||||
| 4 m | 3.2 | 6.3 | 3.2 | |||||||||||||

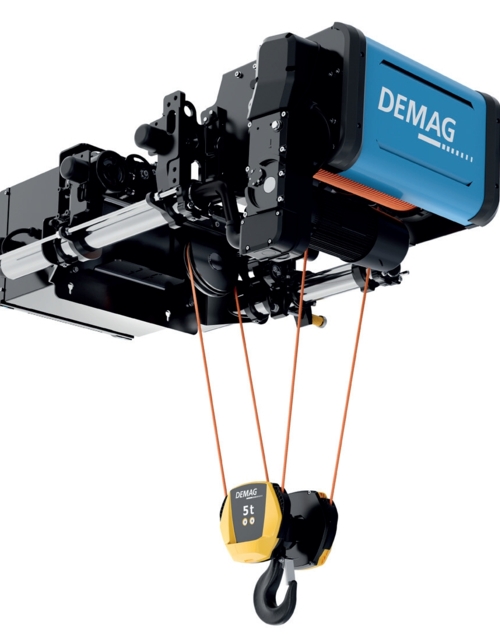

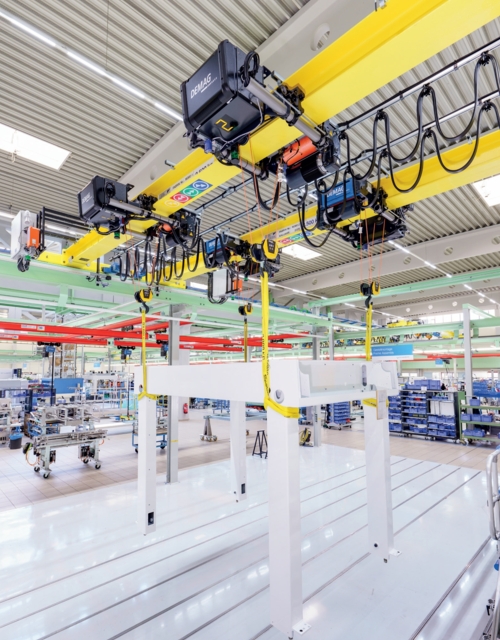

Demag DR 20 rope hoists
The new rope hoist range extend the load capacities up to 50 t and are available three different designs.
Benefits:
- High efficiency thanks to FEM classification
- Optimum utilization of space thanks to its compact design
- Fast handling due to the high hoist speeds
- High availability due to a low maintenance requirement
| Group of mechanisms FEM/ISO |
Load capacity [t] |
Hook path [m] | Hoist speed [m/min] | Load capacity [t] |
Hook path [m] | Hoist speed [m/min] |
| 2/1 | 6/1 | |||||
| 1 Am/M4 | 12.5 | 24 36 54 |
6/1 12/2 1-16(22) |
40 | 12 18 24.7 |
4/0.7 0.3-3.3 (7.7) 0.3-5.3 (7.4) |
| 2 m/M5 | 10 | 32 | ||||
| 3 m/M6 | 8 | 25 | ||||
| 4 m/M7 | 6.3 | 20 | ||||
| 4/1 | 8/1 | |||||
| 1 Am/M4 | 25 | 12 18 24.7 |
3/0.5 6/1 0.5-5 (7) 0.5-8 (11) |
50 | 9 13.5 18.5 |
3/0.5 0.3-2.5 (3.5) 0.2-4 (5.5) |
| 2 m/M5 | 20 | 40 | ||||
| 3 m/M6 | 16 | 32 | ||||
| 4 m/M7 | 12.5 | 25 | ||||
| 4/2 | 8/2 | |||||
| 1 Am/M4 | 12.5 | 12.3 21.2 33.2 |
6/1 12/2 1-16 (22) |
25 | 10.3 16.3 23.4 |
3/0.5 6/1 0.5-5 (7) 0.5-8 (11) |
| 2 m/M5 | 10 | 20 | ||||
| 3 m/M6 | 8 | 16 | ||||
| 4 m/M7 | 6.3 | 12.5 | ||||

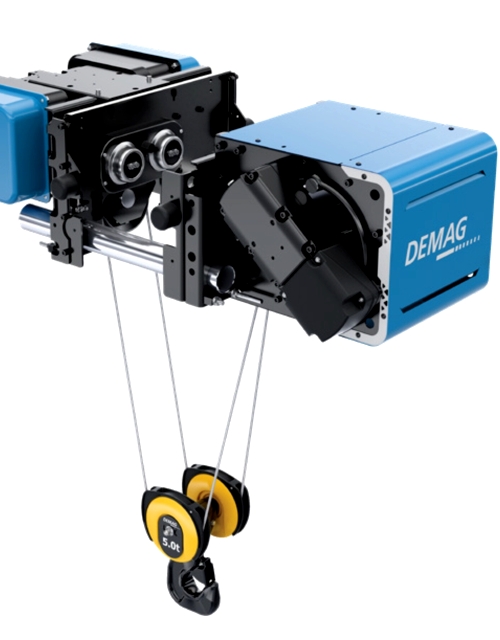

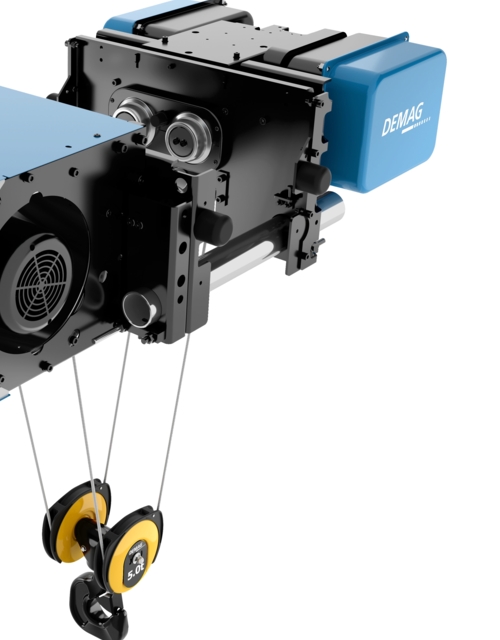

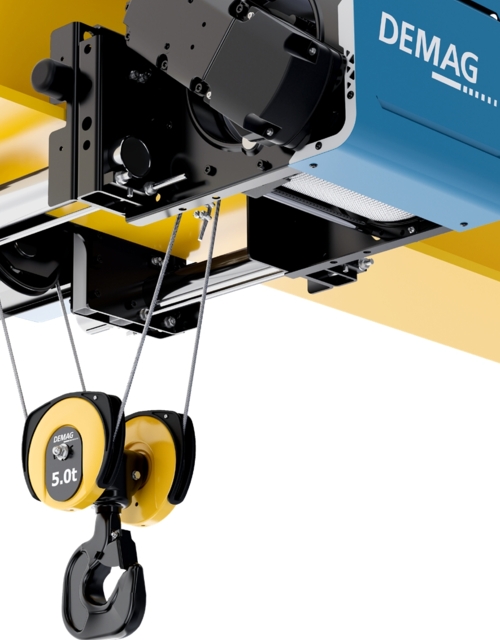

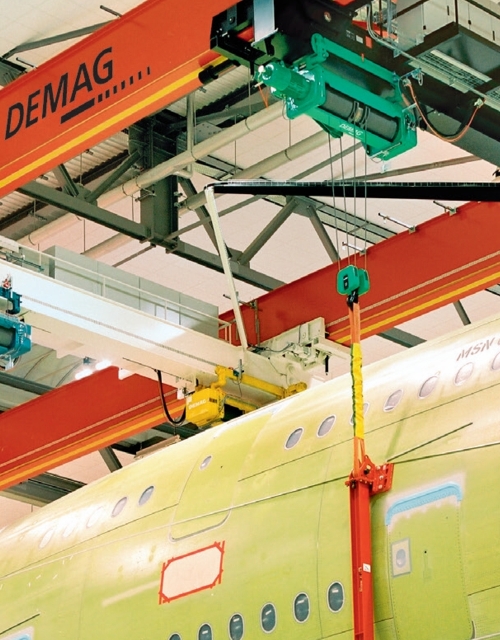

Demag FDR 3-20 rope hoists
The successful Demag DR 3,5, 10 and 20 rope hoist range is now available as an FDR universal foot-mounted hoist for direct connection to support structure.
The attachment points are designed in such a way that the rope hoist can be installed in four mounting positions.
For load capacity from 3,2 up to 50 t.
Outstanding benefits:
- Versatile applications thanks to variable rope lead-offs
- Flexible mounting arrangements due to various connection variants
- One rope guide for all rope lead-off variants
- High efficiency due to 20% longer service life
